Bunker liners
Professional performance and problem-free installation
The GolfDren products are available in two different options that have the same mechanical and functional properties. The type of bunker liner is selected according to the characteristics of the bunker subsoil. GolfDren products are produced in white color. No matter the budget or desired level of performance, GolfDren has a bunker liner option that will meet the needs of any golf course. If you are interested in our products or want to learn more, please do not hesitate to contact us.

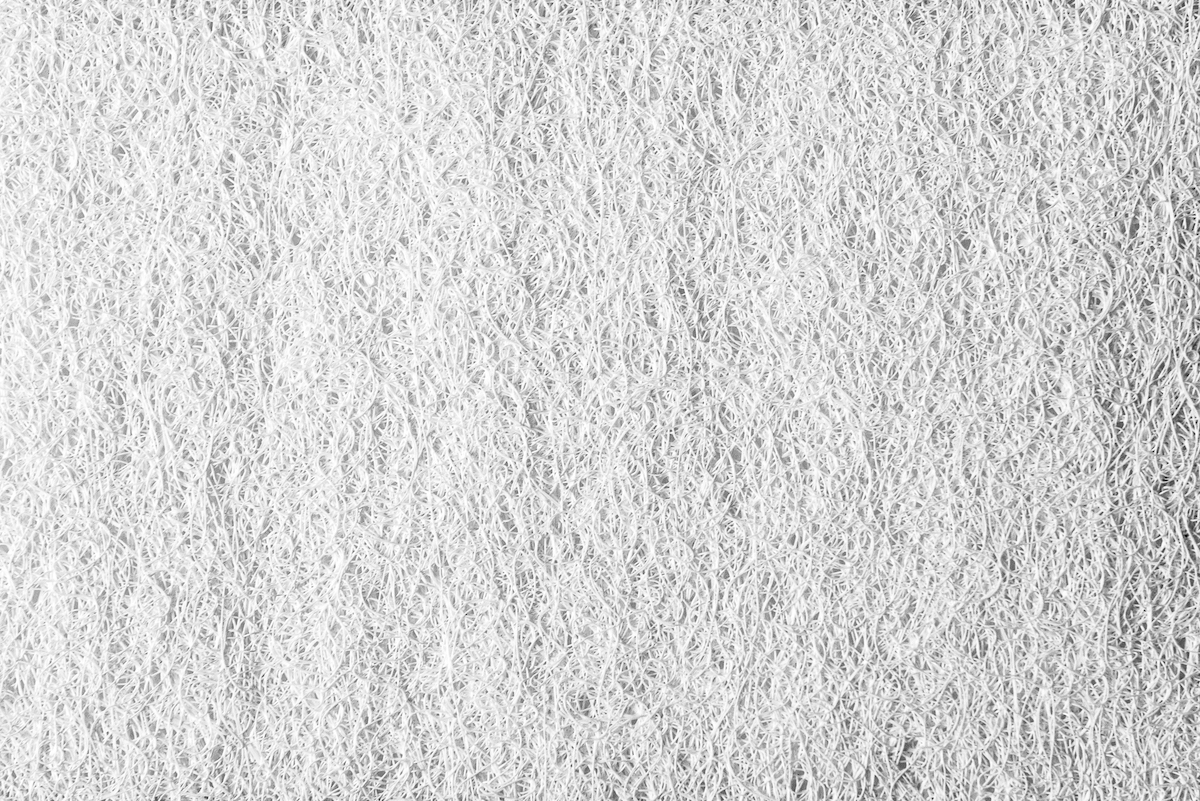

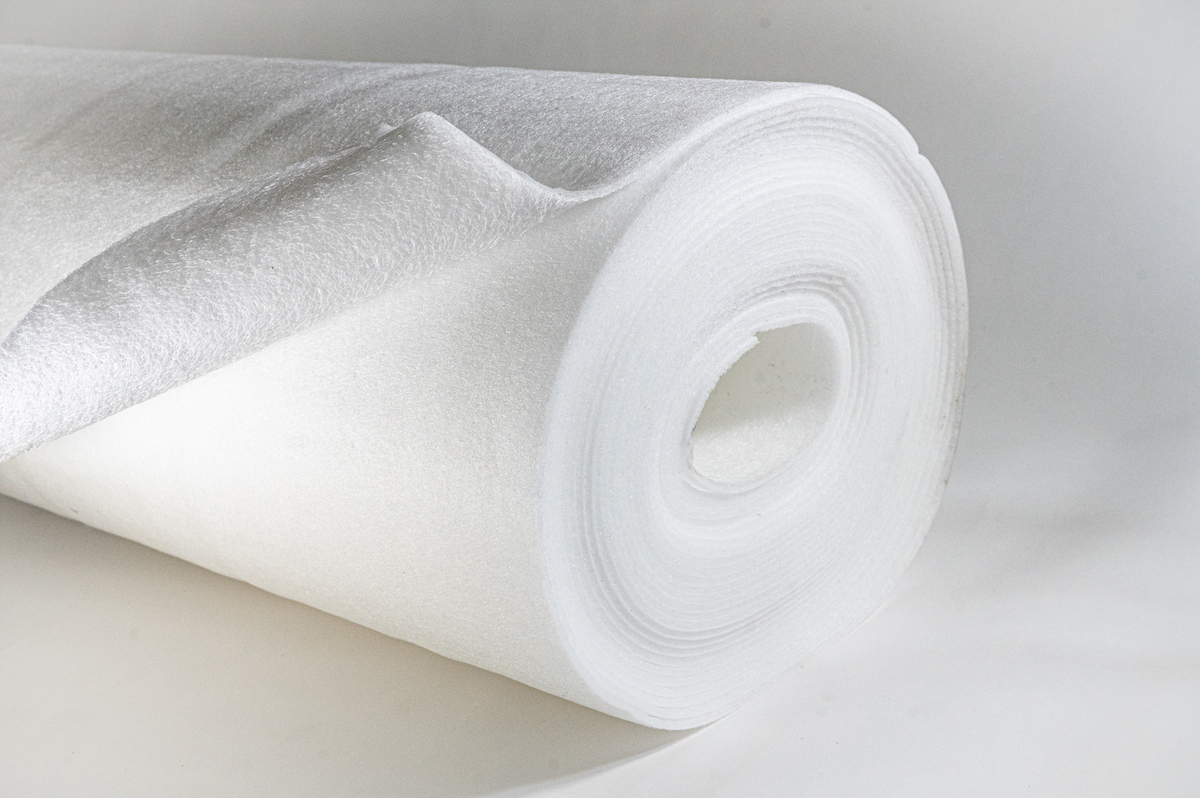

GolfDren Effect
Structurally open type of bunker liner with full water permeability.
Technical parameters
| Material | polyethylene (PE) |
| Basis weight | 1500 g/m2 |
| Thickness | 7,0 mm |
| Tensile strength - MD | 4 kN/m |
| Tensile strength - CMD | 5 kN/m |
| Elongation - MD | 17% |
| Elongation - CMD | 20% |
| Static rupture test | 600 N |
| Dynamic rupture test | 8 mm |
| Water permeability perpendicular to the plane | 0,11 l/(m2/s) |
| Characteristic opening size O90 | 0,8 mm |
| Weather resistance | Cover within 1 day after installation |
| Length of cartridge | 25 m |
| Roll width | 1,5 m |
| Charge area | 37,5 m2 |
| Roll diameter | cca 50 cm |
| Roll weight (gross) | 59 kg |

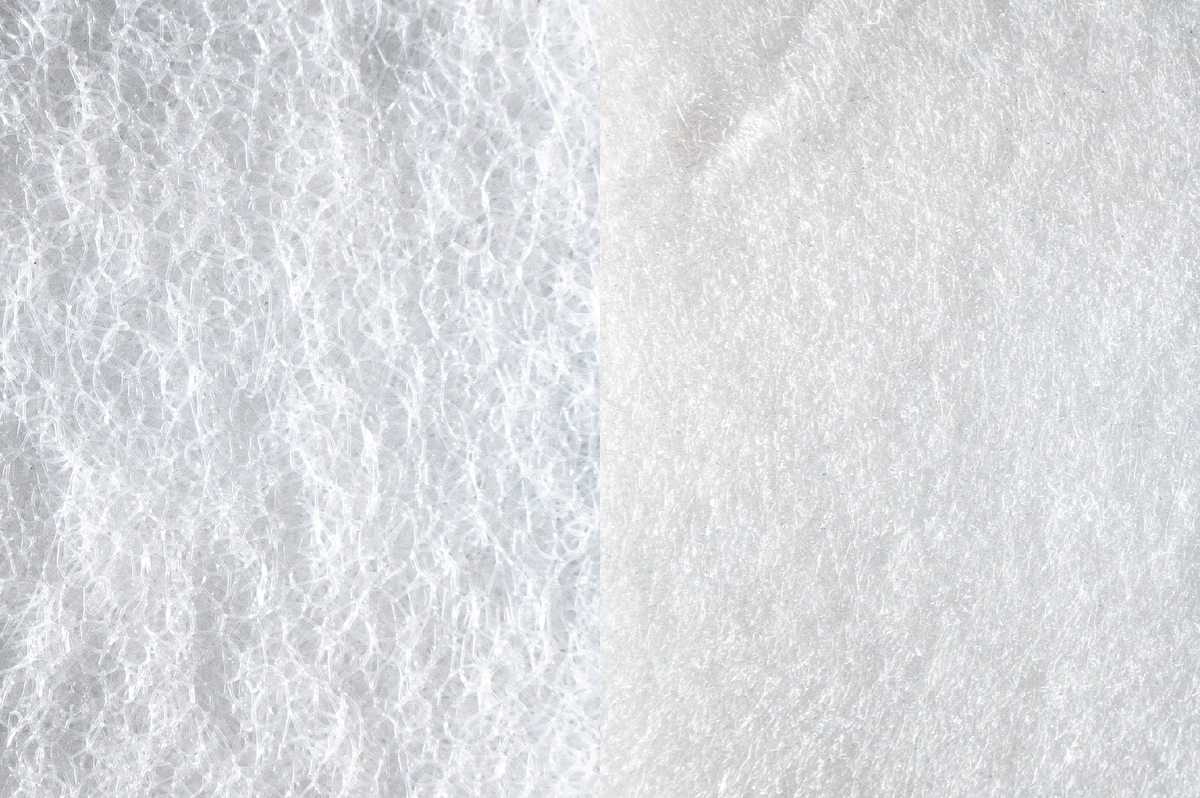

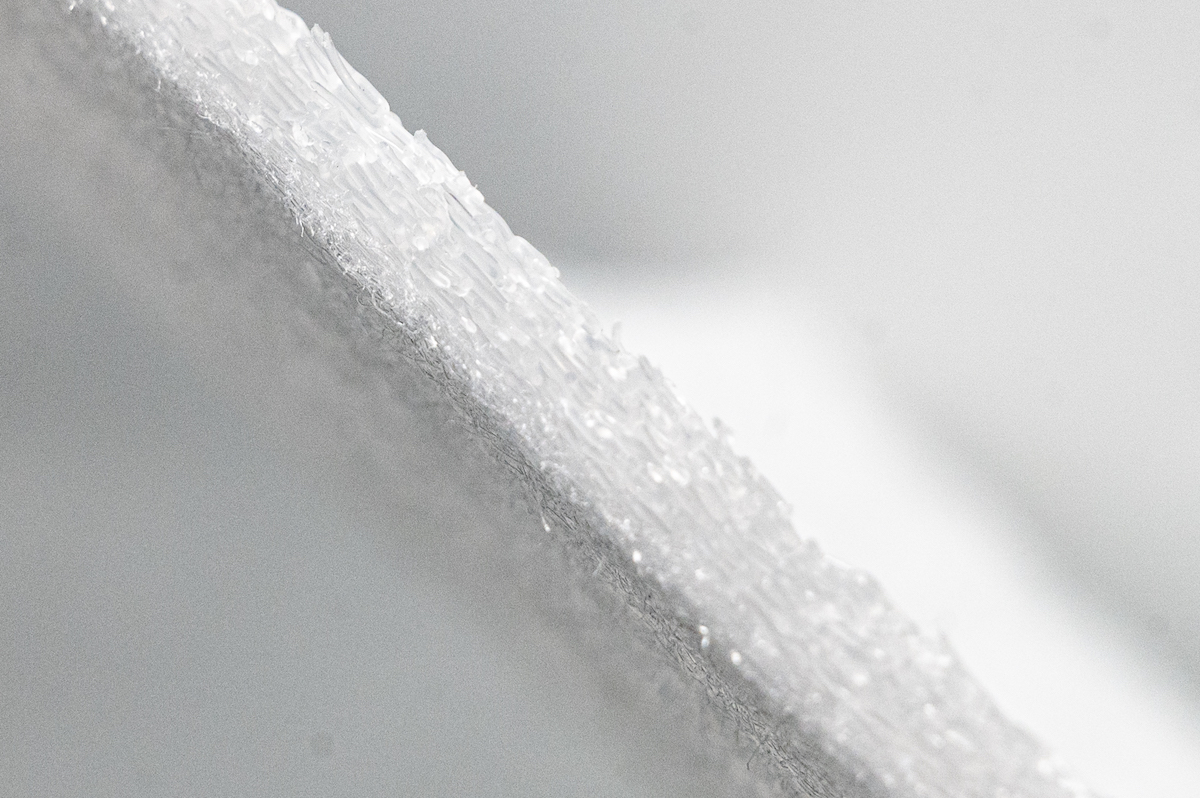

GolfDren Duotop
Composite bunker liner suitable for clay and loam base.
Technical parameters
| Material | polyethylene (PE) |
| Basis weight | 1500 g/m2 |
| Thickness | 7,0 mm |
| Tensile strength - MD | 4 kN/m |
| Tensile strength - CMD | 5 kN/m |
| Elongation - MD | 17% |
| Elongation - CMD | 20% |
| Static rupture test | 600 N |
| Dynamic rupture test | 8 mm |
| Water permeability perpendicular to the plane | 0,11 l/(m2/s) |
| Characteristic opening size O90 | 0,8 mm |
| Weather resistance | Cover within 1 day after installation |
| Length of cartridge | 25 m |
| Roll width | 1,5 m |
| Charge area | 37,5 m2 |
| Roll diameter | cca 50 cm |
| Roll weight (gross) | 56,3 kg |
Should you have any questions, do not hesitate to contact us.
